Manufactured from high-performance carbide material for excellent wear resistance, toughness, and long tool life.
Produced using advanced 5-axis CNC tool grinding for exceptional dimensional accuracy and consistent cutting performance.
Specially Treated Cutting Edge
The insert tip is processed with a proprietary edge treatment to improve sharpness, stability, and resistance to chipping.
High-Performance Coating
Advanced coating technology provides superior heat resistance, reduced friction, and extended tool life under demanding machining conditions.
Designed specifically for high-efficiency machining of small components, delivering excellent productivity and long service life.
primarily used for parting-off and grooving operations on micro lathes,
automatic lathes, and Swiss-type lathes.
The indexable tool holders are made from high-quality tool steel imported from Japan and South Korea and are CNC-machined.
After vacuum heat treatment, the tools undergo secondary precision milling,
followed by CNC surface grinding.
They are vibration-resistant, durable, and resistant to deformation.
The surface is nickel-plated to prevent corrosion.
Shank dimensions: 12mm x 12mm,
Total length: 108mm

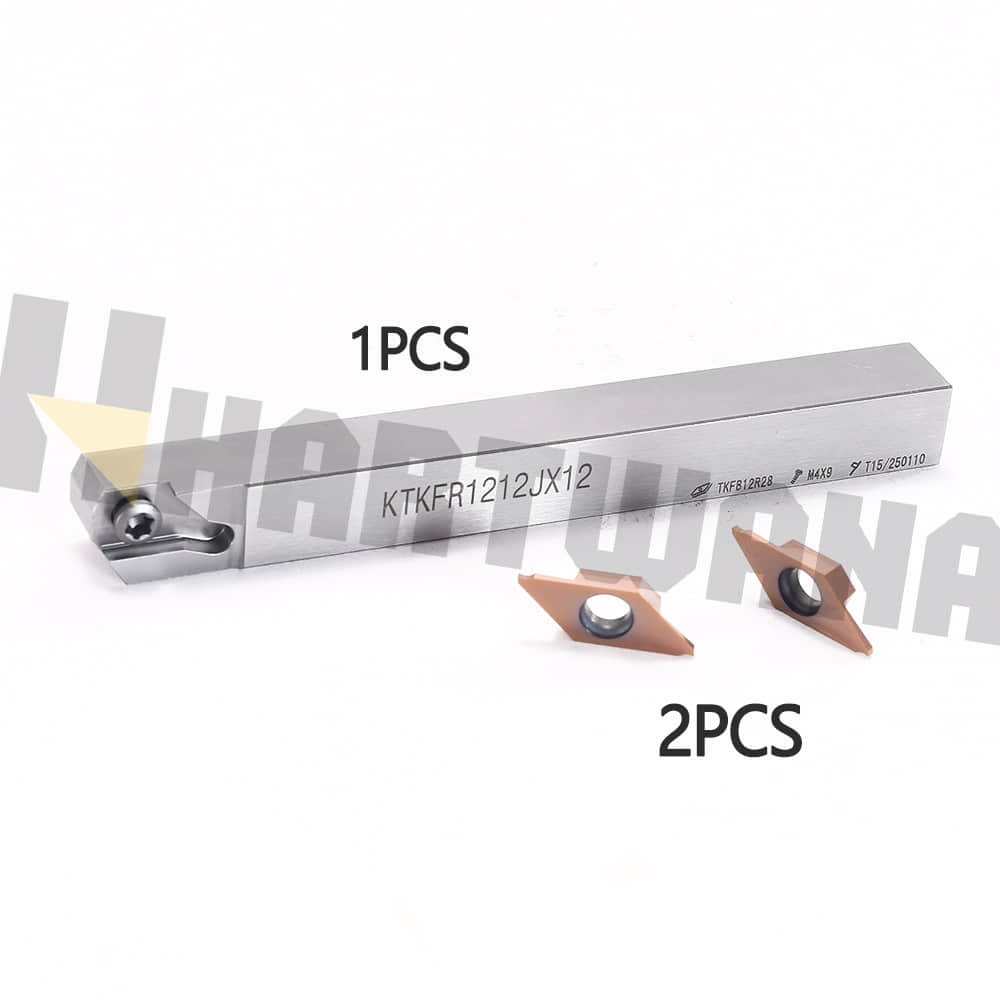

KTKFR1212JX-12 1PCS
TKF12R100-S 2PCS

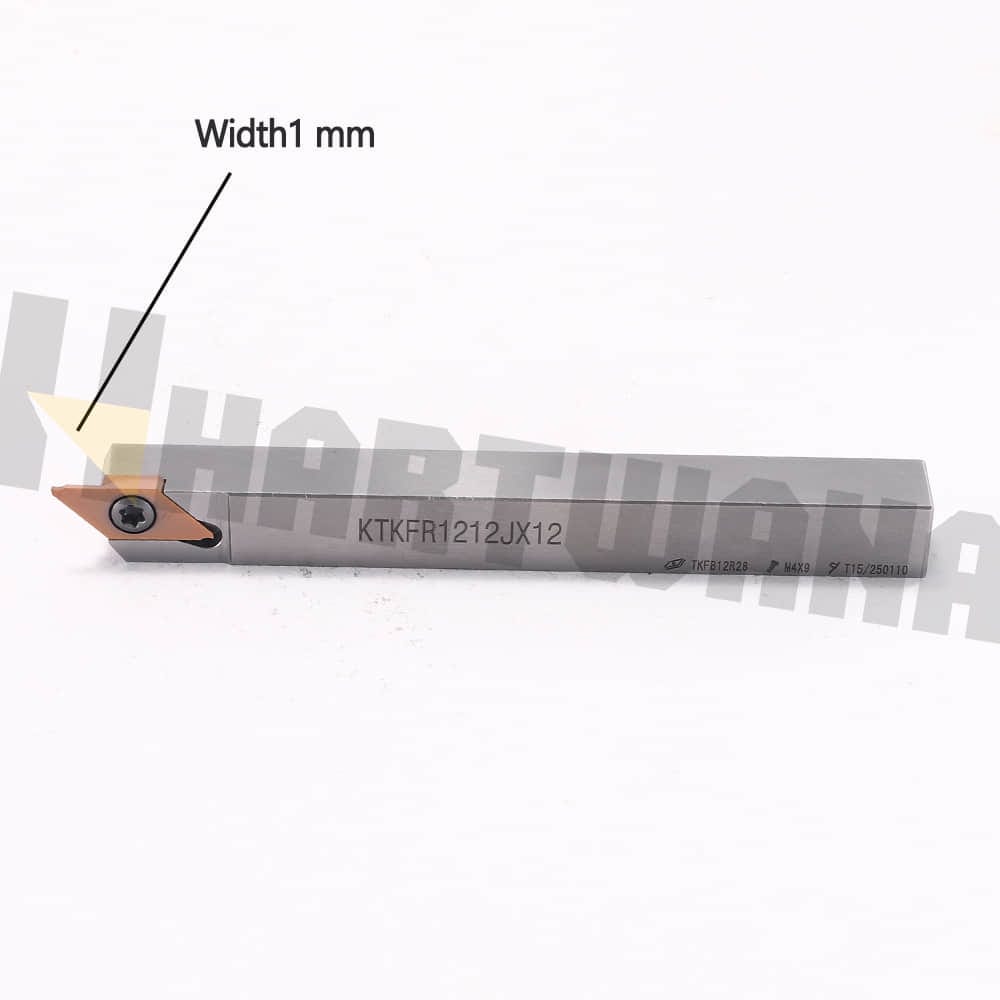

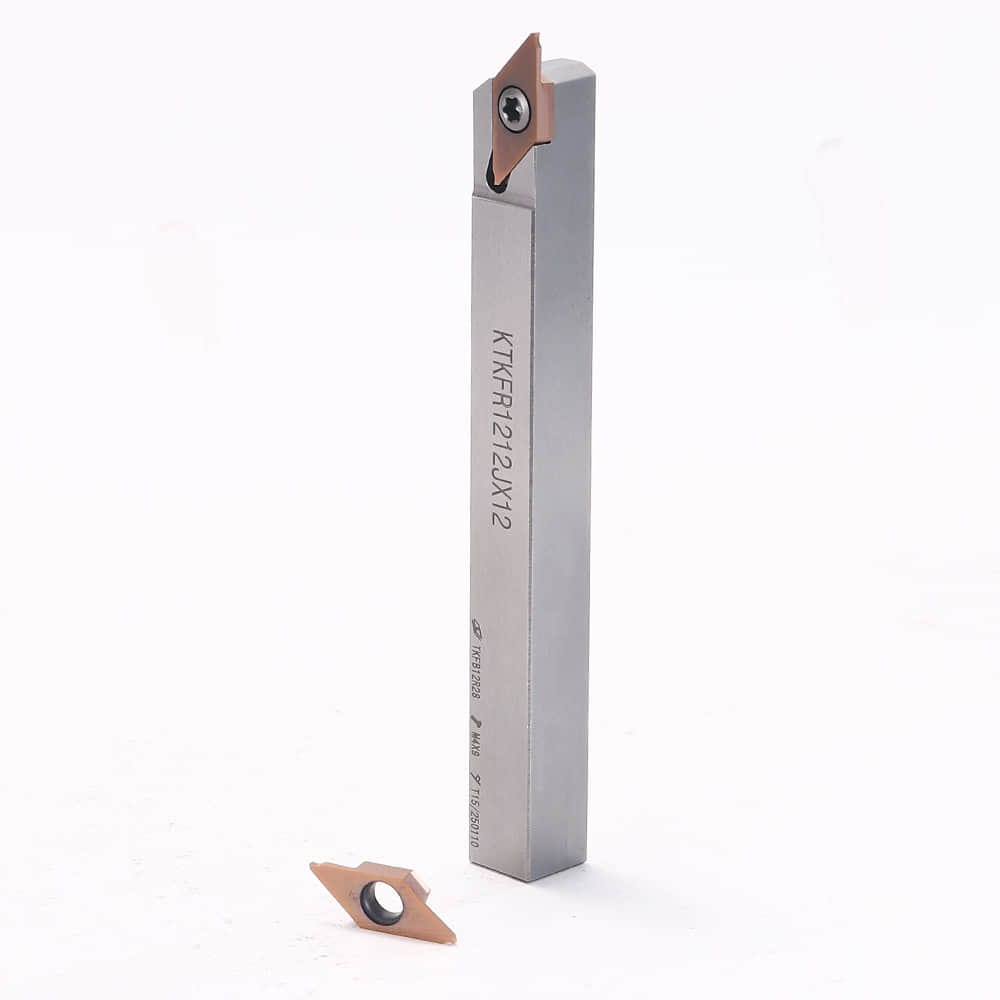

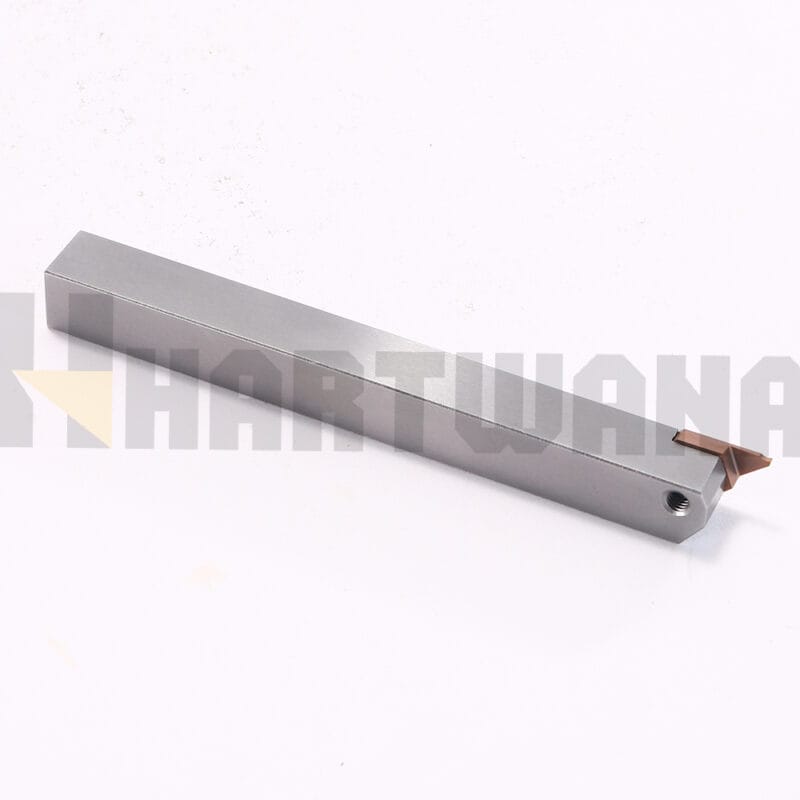

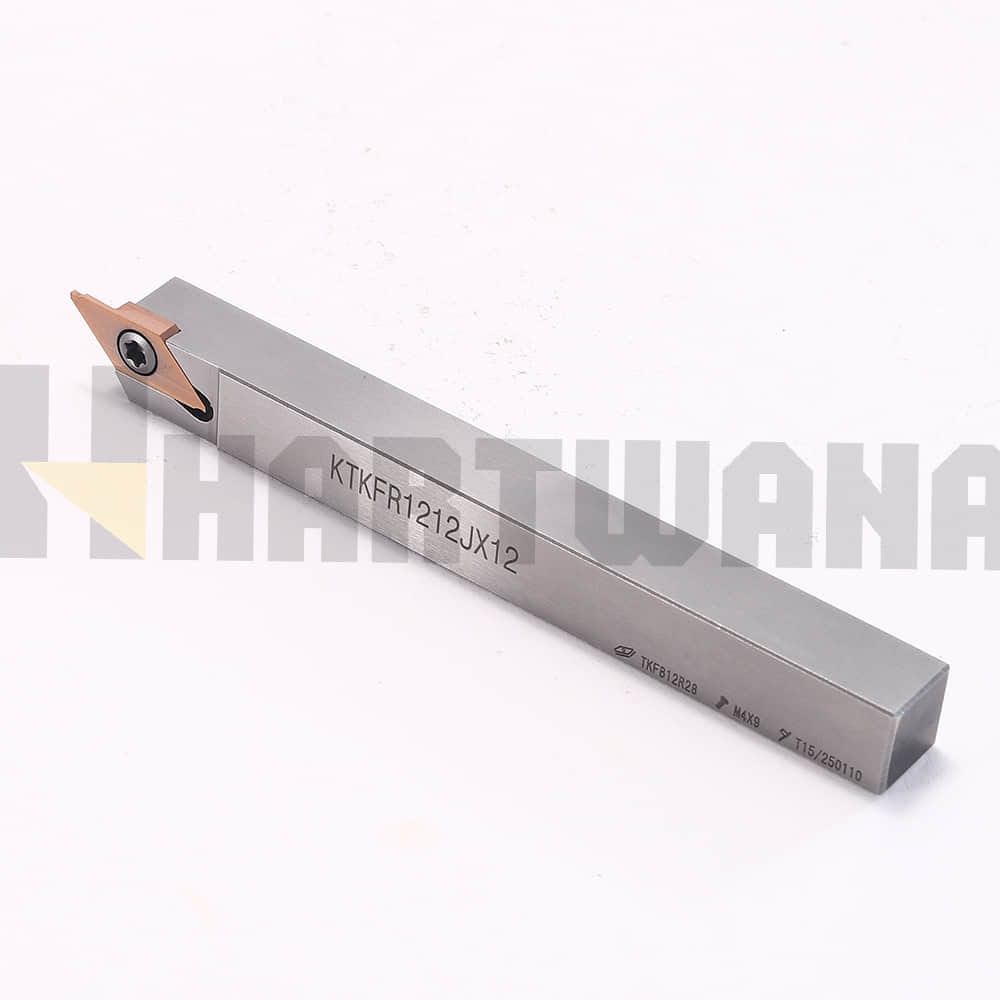

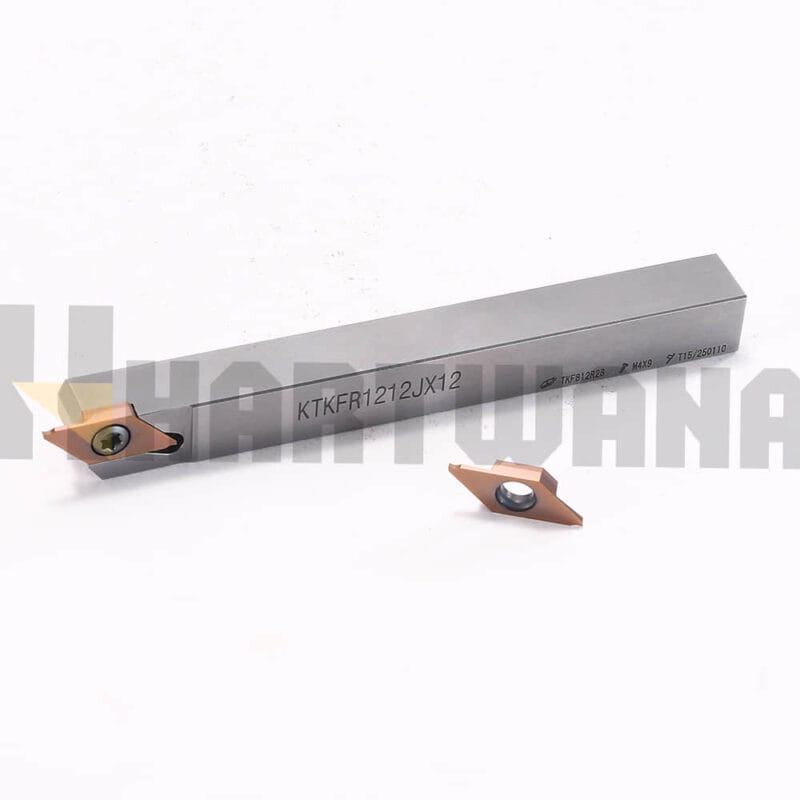

Indexable Grooving Cut-Off Insert TKF12R100-S Premium 1mm Swiss Lathe Mini Holder Turning Holder KTKFR1212JX-12
