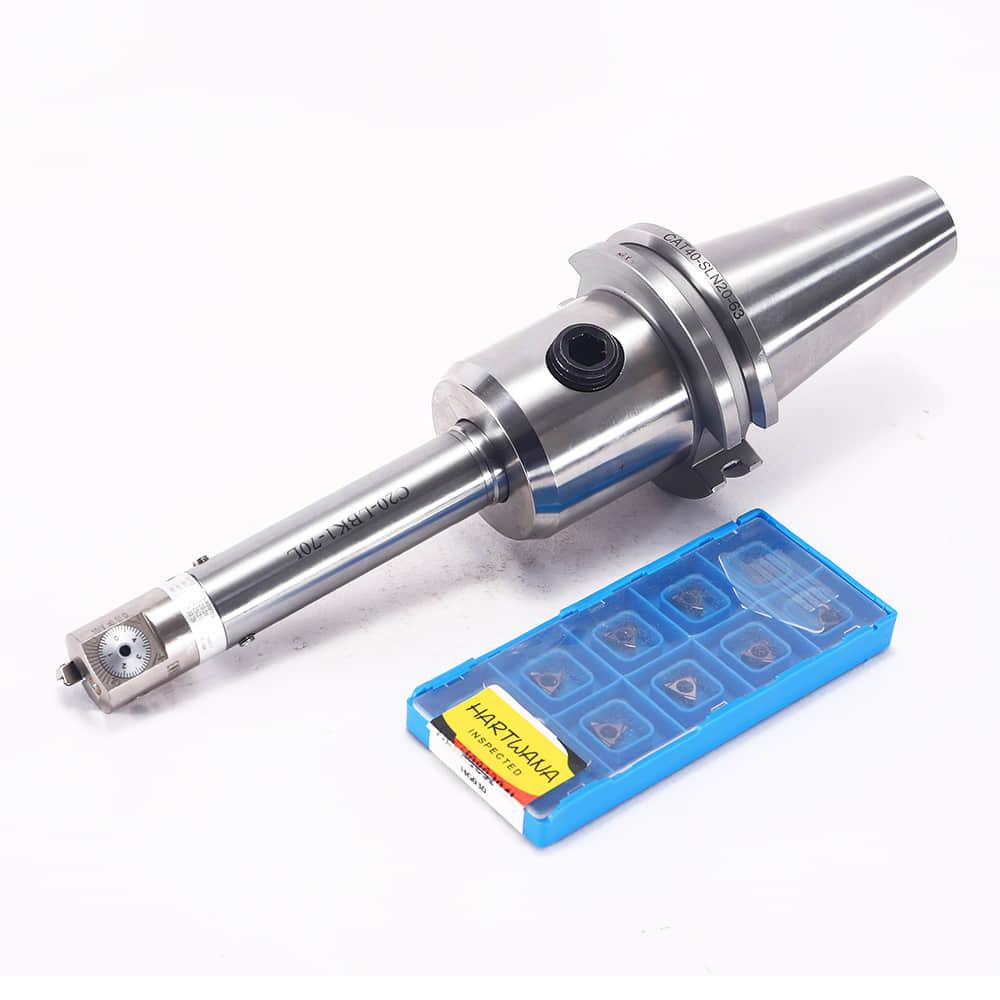

CAT40-SLN20-63 CNC Indexable Boring Tool Set – Precision Boring System
📌 Product Description
This high-precision professional CNC indexable boring tool system is designed for stable,
accurate, and efficient boring operations. Manufactured using premium materials and advanced CNC machining processes,
this tool set provides excellent rigidity, durability, and long service life.
The CAT40-SLN20-63 side lock end mill holder is made of high-quality tool steel with vacuum heat treatment and precision CNC turning and grinding.
It ensures high strength, excellent wear resistance, and minimal deformation during heavy machining.
The indexable straight shank boring bar is produced from imported Japanese tool steel,
vacuum heat-treated and CNC precision machined for superior vibration resistance and durability.
Key Features
High Precision CNC Boring Tool System for accurate machining
CAT40-SLN20-63 Side Lock Holder made of premium tool steel
Vacuum Heat Treatment improves strength and durability
Precision CNC Turning & Grinding ensures high accuracy
Indexable Carbide Boring Inserts with ground cutting edges
Edge Honing & Polishing improves wear resistance and tool life
Advanced Coating Technology for high temperature and wear resistance
Strong anti-vibration design for stable boring performance
Specifications
Tool Holder Model: CAT40-SLN20-63
Boring Bar Diameter: 20 mm
Overall Length: 70 mm

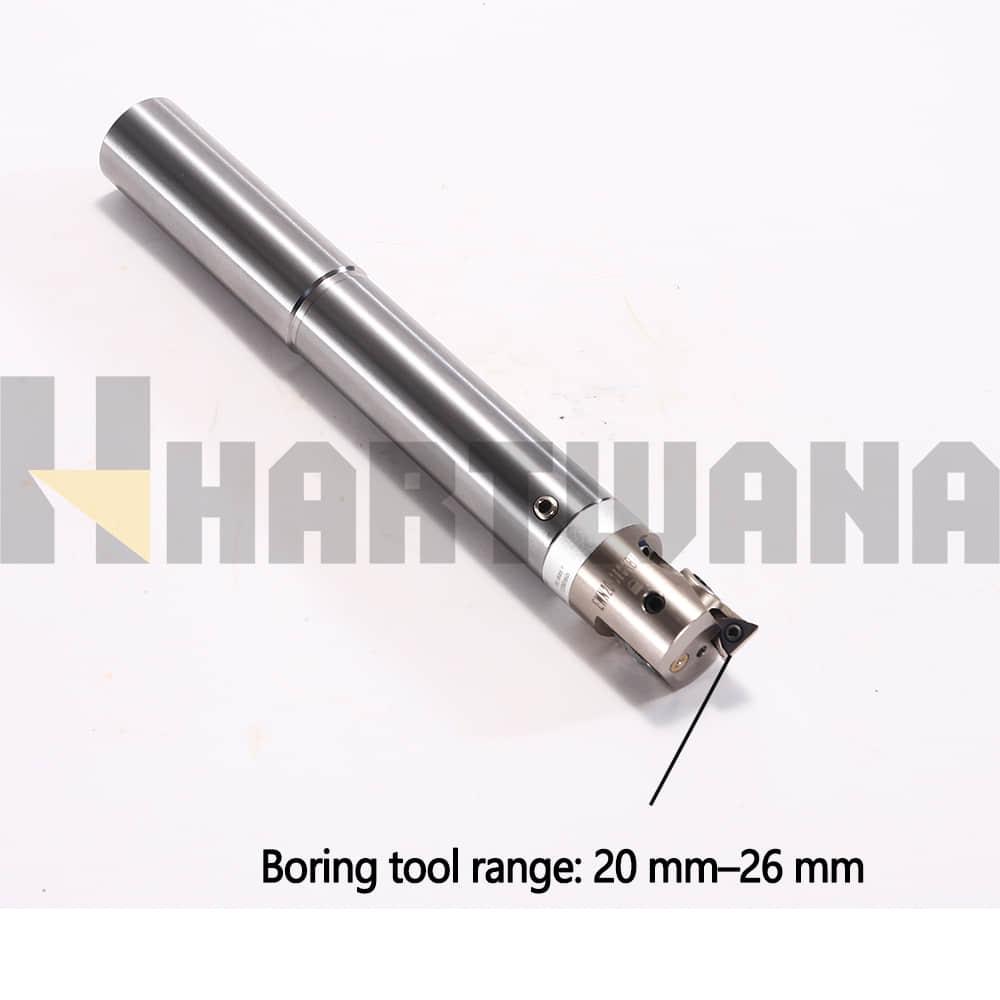

Boring Range: 20 mm – 26 mm
Insert Nose Radius: R0.4 mm
Insert Material: Carbide
Surface Treatment: Wear-resistant coating
Suitable Materials
This boring tool set is suitable for machining:
✔ Steel
✔ Carbon Steel
✔ Stainless Steel
✔ Alloy Steel

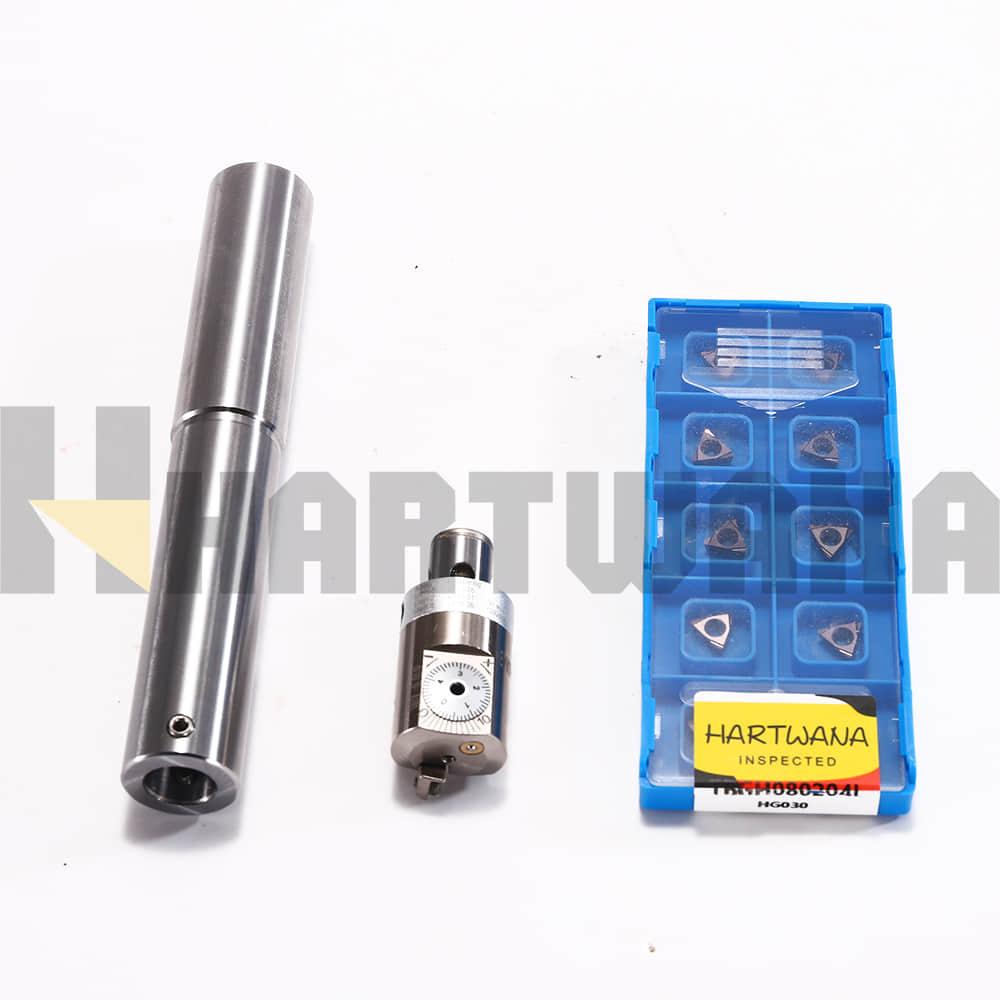

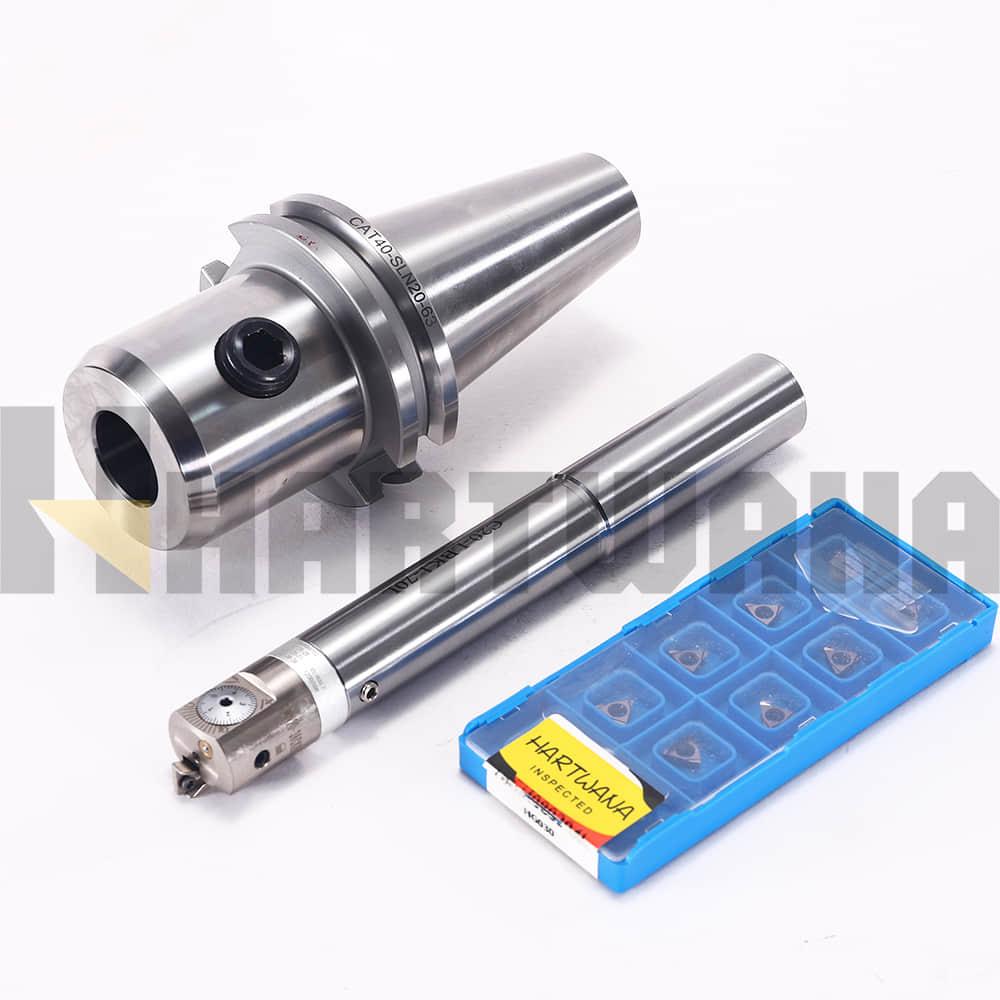

Package Includes
CAT40-SLN20-63 Tool Holder × 1

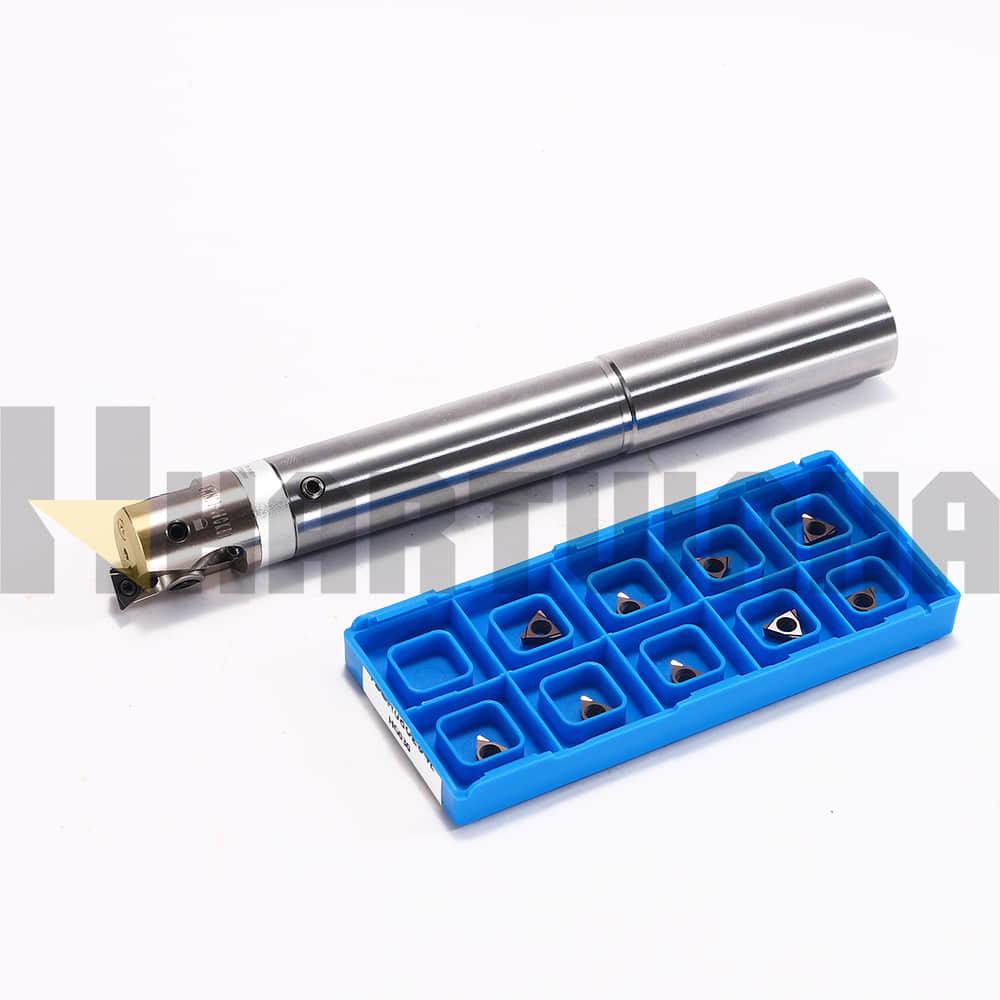

20mm Straight Shank Boring Bar × 1
Indexable Boring Tool Holder × 1
Carbide Inserts × 10

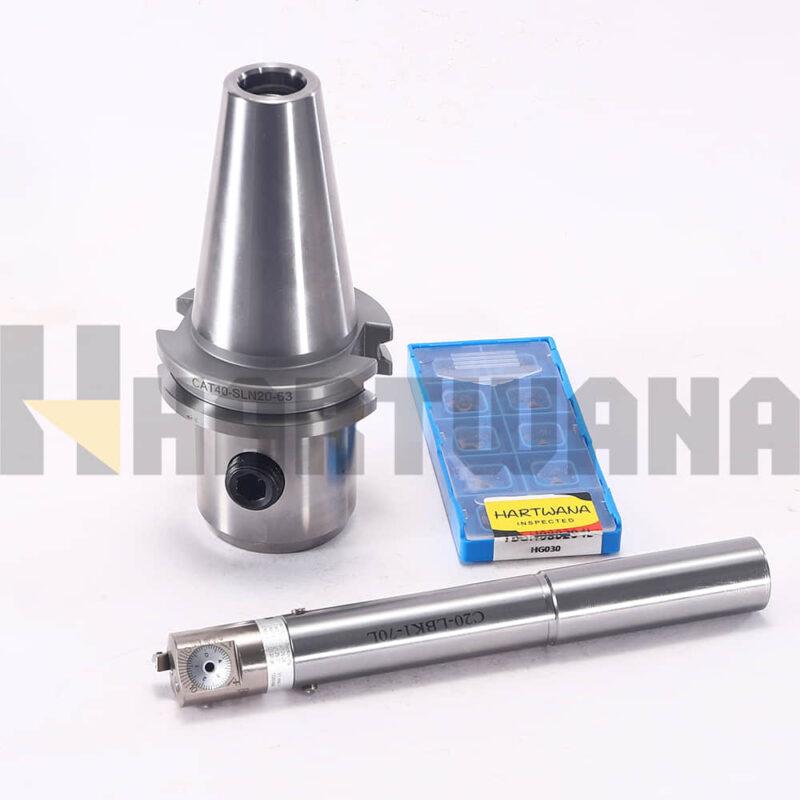

CAT40 End Mill Holders Straight Shank Boring Head Indexable Boring Bar Set Carbide Inserts TBGH080204L
